Vertiv Liebert POD PD2 - (4) NEMA 5-20R| (2) L6-30R| (2) L6-20R| UPS Maintenance
Vertiv Liebert POD PD2 - (4) NEMA 5-20R| (2) L6-30R| (2) L6-20R| UPS Maintenance - Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-104
| $596.95 | Retail $744.00 |
- Power output distribution unit with UPS maintenance bypass feature
- Avoid initiating unnecessary downtimes while conducting UPS maintenance
- Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
- Output: Four (4) NEMA 5-20R, Two (2) NEMA L6-30R, Two (2) NEMA L6-20R| Max Current: 60A
- Input: Hardwire 4-wire (2PH+N+G)
By:
Liebert
Manufacturer:
Vertiv
Product ID:
110107
Item:
PD2-104
UPC Code:
813829010477
Our Part #
CT6961
Condition
New
$596.95EA
$744.00
$744.00
Availability
Only 8 Left In Stock
Product description
Vertiv Liebert POD PD2 - (4) NEMA 5-20R| (2) L6-30R| (2) L6-20R| UPS Maintenance - Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-104
Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-104
Specifications
Plug/Connector Detail
1 x Hardwire Terminal Block 3W + G
Receptacle Detail
4 x NEMA 5-15R/20R
Receptacle Detail
2 x NEMA L6-20R
Receptacle Detail
2 x NEMA L6-30R
UPC Alternates
813829010477
Additional Information
Power distribution
Brand Name
Liebert
Compatibility
Liebert UPS Systems:
- GXT3-8000RT208
- GXT3-10000RT208
Height
5.7"
Manufacturer
Vertiv
Manufacturer Part Number
PD2-104
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information

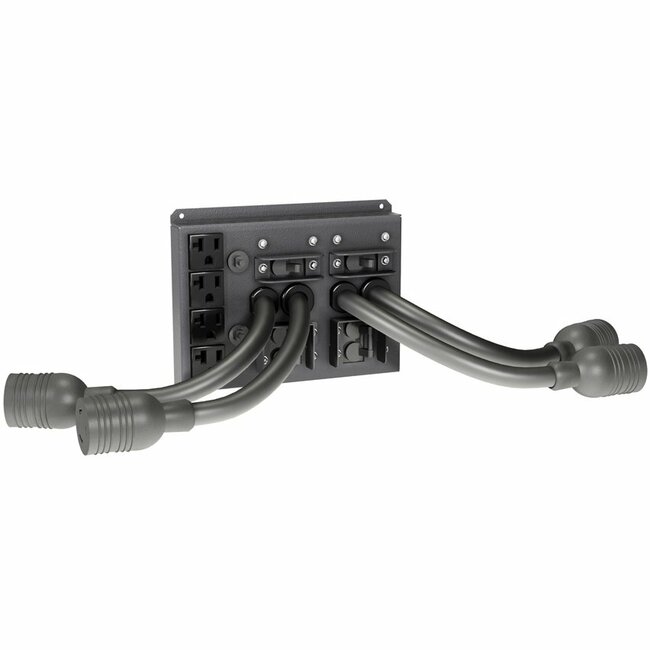

The Vertiv Liebert POD PD2-104 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-104 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA 5-20R two NEMA L6-30R and two NEMA L6-20R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 60A.
Plug/Connector Type
Hardwire Terminal Block 3W + G
Product Name
PD2-104 8-Outlets PDU
Product Type
PDU
Receptacle Type
NEMA L6-20R
Receptacle Type
NEMA 5-15R/20R
Receptacle Type
NEMA L6-30R
Weight (Approximate)
6.60 lb
Width
7.4"
